Regal-170EXT
Regal-170EXT
Couldn't load pickup availability
Features & Benefits
- Superior out-of-sump performance
- VarioS DC pump specifically made for protein skimmer
- Controllable and variable speed DC pump for energy-efficient and silent operation
- Float switch monitor
- High quality hand-made solid cast acrylic construction
- Hybrid conical body for better foam fractionation

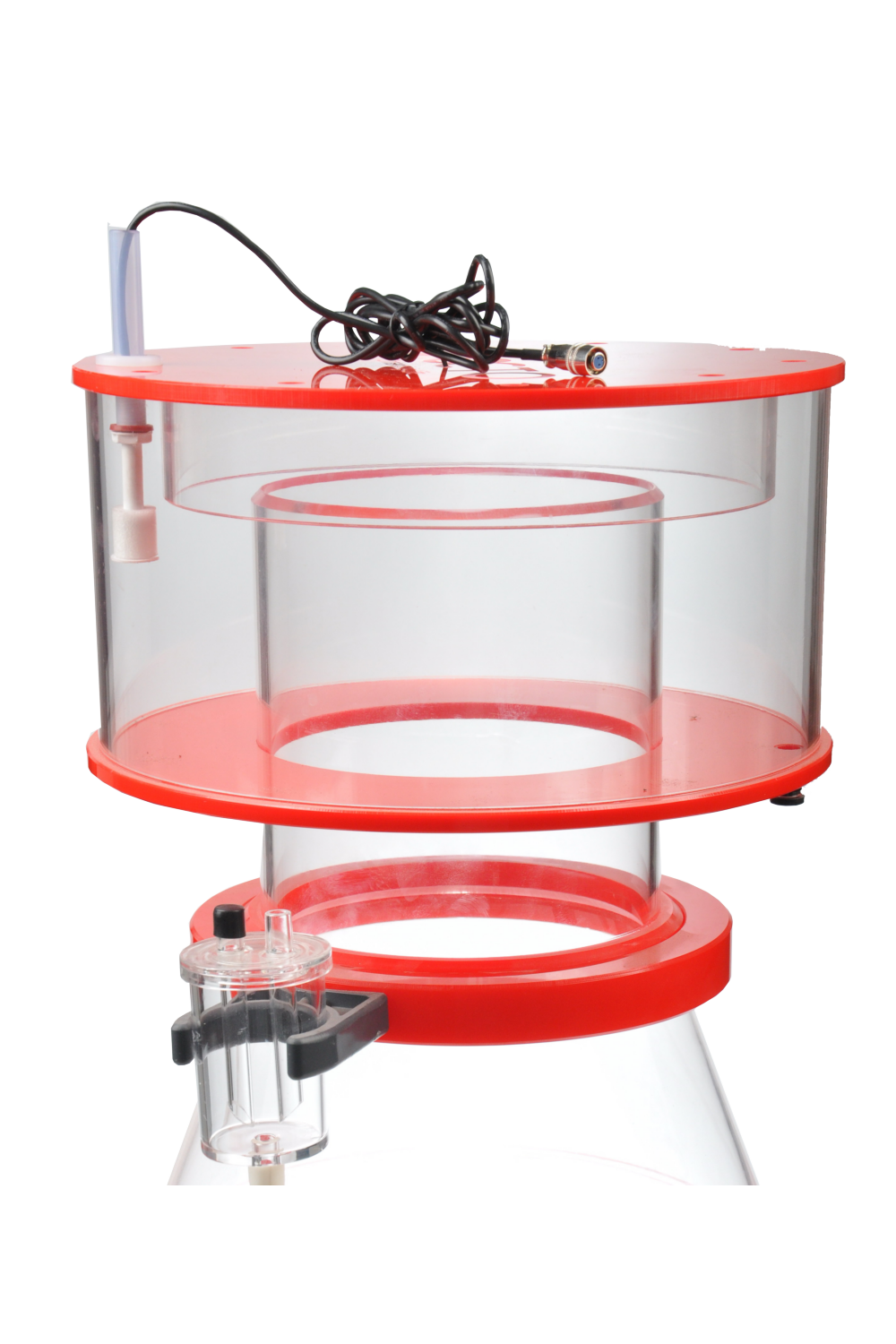

- Over size collection cup with waste drainage
- High volume air intake
- Automatic drainage system
- Easy maintenance
Overview

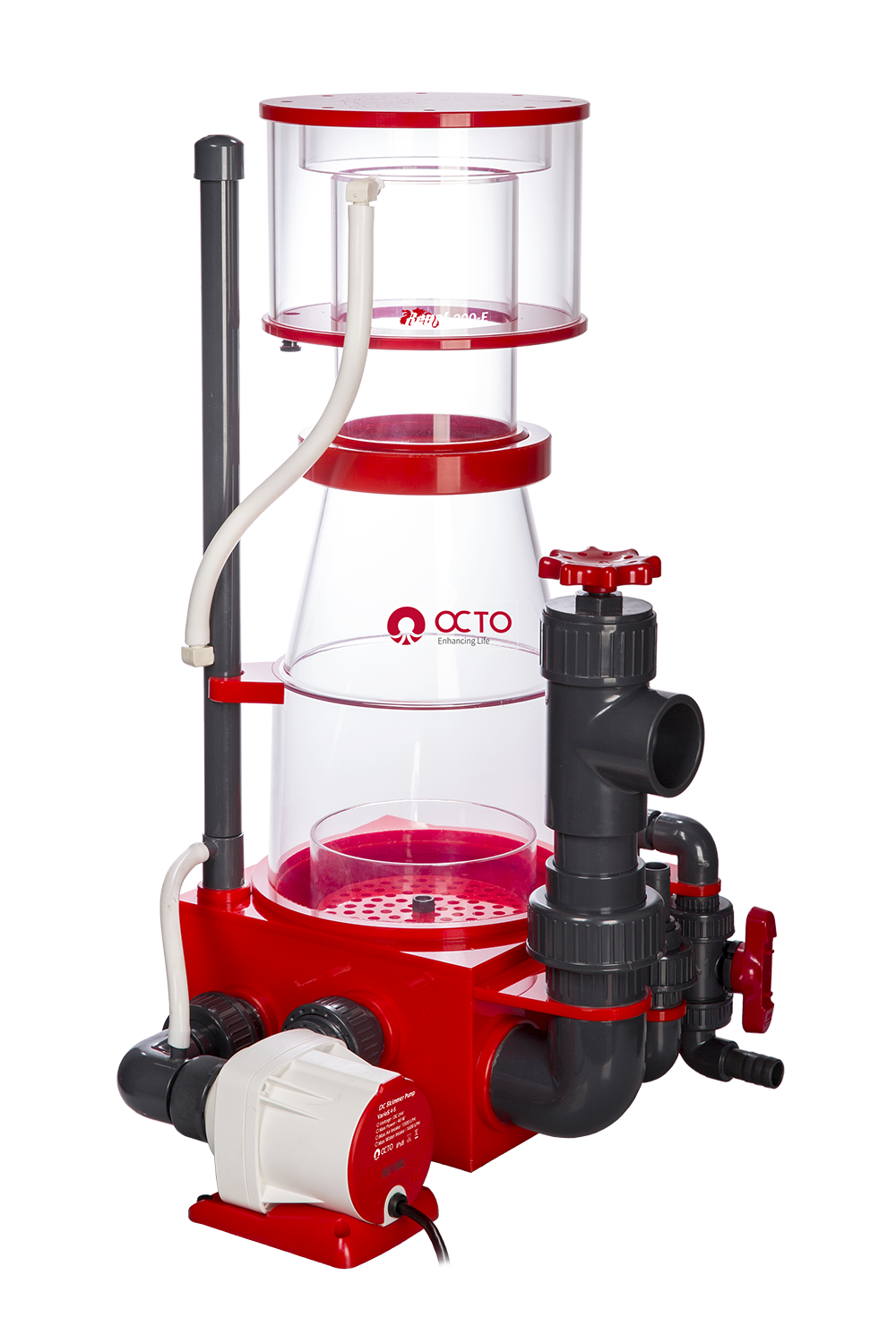

OCTO series Regal recirculating external protein skimmer (Regal -E) is an out-of –sump protein skimmer featuring high-quality cast acrylic body construction , easy disassembly for maintenance , a precision control gate valve and a hybrid conical body which helps to naturally stabilize and concentrate the organic rich foam as it rises . Water is recirculated within the skimmer for cleaner water output.
Regal –E is run by our very own controllable VarioS skimmer pump , which features is pinwheel impellers , a detachable controller , high quality ceramic shaft and bearing to reduce wear and tear , and the latest variable speed flow technology for refined control , enhanced performance , energy-efficiency and safer operations .
Unlike the vast majority of circulation pumps which uses alternating current (AC), our VarioS Pump boasts several key advantages over traditional AC pump, namely , higher energy efficiency , safer operations at a working voltage of 24V and most notably , the variable speed control to adjust the ideal mix of air and water flow into the skimmer .
Enhanced Control

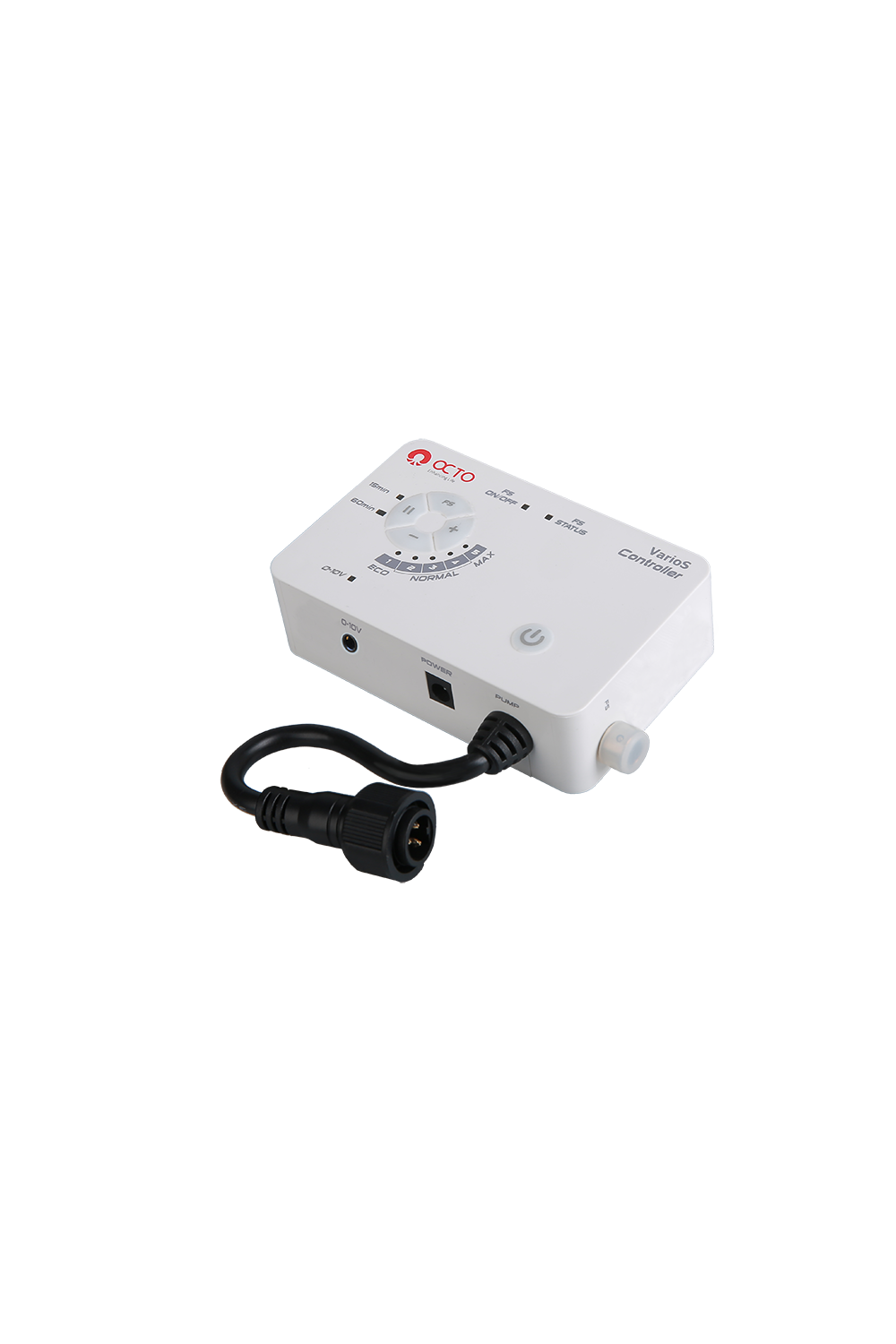

With the VarioS controller, user has control over the flowrate by selecting amongst five preset speed settings; indicated by five lit LEDs. A 15 or 60 minute feed mode can also be engaged or disengaged with the push of a button.
A rotatable output volute orientation allows for adjustment horizontally or vertically for placement flexibility.
Under normal usage, VarioS pump has an expected lifespan/product life expectancy of 10 years.
Available in 3 models – Regal 200-E , Regal 250-E, Regal 300-E
Warranty* (against manufacturing defect):
2 years – Pump motor only
What's included
| Article Code | Items | Regal 200-E | Article Code | Items | Regal 250-E | Regal 300-E | |||
| Model No. | Qty | Model No. | Qty | Model No. | Qty | ||||
| a | Top Cover | – | 1 | a | Top Cover | – | 1 | – | 1 |
| b | Collection Cup | – | 1 | b | Collection Cup | – | 1 | – | 1 |
| c | Silencer | – | 1 | c | Overflow Hose | – | 1 | – | 1 |
| d | Overflow Hose | – | 1 | d | Silencer | – | 1 | – | 1 |
| e | O Ring | – | 2 | e | Skimmer Body | – | 1 | – | 1 |
| f | Air Hose | – | 1 | f | O Ring | – | 2 | – | 2 |
| g | O Ring | – | 2 | g | O Ring | – | 2 | – | 2 |
| h | Venturi | – | 1 | h | Air Hose | – | 1 | – | 1 |
| i | O Ring | – | 1 | i | Venturi | – | 1 | – | 1 |
| j | Skimmer Pump | VarioS 4-S | 1 | j | O Ring | – | 1 | – | 1 |
| k | O Ring | – | 1 | k | Skimmer Pump | VarioS 6-S | 1 | VarioS 6-S | 1 |
| l | Skimmer body | – | 1 | l | O Ring | – | 1 | – | 1 |
| m | Gate Valve | – | 1 | m | Gate Valve | – | 1 | – | 1 |
| n | Water Inlet | – | 1 | n | Water Inlet | – | 1 | – | 1 |
| o | Non-syphon Bar | – | 1 | o | Non-syphon Bar | – | 1 | – | 1 |
| p | ” T” | – | 1 | p | ” T” | – | 1 | – | 1 |
| q | Elbow | – | 1 | q | Elbow | – | 1 | – | 1 |
| r | Automatic Drainage | – | 1 | r | Automatic Drainage | – | 1 | – | 1 |
Technical Data
1. Skimmers
| Product | Wet/Dry | Pump Power | Cup Diameter | Neck Diameter | Footprint | Height | Output Size | ||||||
| W | mm | inch | mm | inch | mm | inch | mm | inch | |||||
| Regal 200-E | Dry | 40 | 200 | 7.9 | 120 | 4.7 | 400 | 350 | 15.8 | 13.8 | 645 | 25.40 | ø50mm(1-1/2″) |
| Regal 250-E | Dry | 70 | 250 | 9.9 | 140 | 5.5 | 460 | 390 | 18.1 | 15.4 | 670 | 26.40 | ø50mm(1-1/2″) |
| Regal 300-E | Dry | 70 | 300 | 11.8 | 170 | 6.7 | 510 | 445 | 20.1 | 17.5 | 720 | 28.40 | ø50mm(1-1/2″) |
| Product | Water Inlet Size | Tank Volume | Fitting Pump Suggestion | |||||
| Union | Barb fittings | L | US Gal | LPH | GPH | |||
| mm | inch | mm | inch | |||||
| Regal 200-E | 25 | 3/4 | 20 | 0.79 | 1500 | 396 | 3000-4000 | 792-1056 |
| Regal 250-E | 32 | 1 | 25/32 | 0.98/1.25 | 2400 | 634 | 3500-4500 | 924-1188 |
| Regal 300-E | 32 | 1 | 25/32 | 0.98/1.25 | 2800 | 739 | 5000-6000 | 1320-1585 |
2. Skimmer Pump
| Product | Model No. | Wet/Dry | Power | Max Air Intake | Maximum Flow Rate | Connection Size ( outlet) | ||
| LPH | Gph | LPH | GPH | |||||
| Regal 200-E | VarioS 4-S | Both | 40 | 1500 | 396 | 1600 | 422 | ø32(1″) |
| Regal 250-E | VarioS 6-S | Both | 70 | 2400 | 634 | 2000 | 528 | ø40(1-1/4″) |
| Regal 300-E | VarioS 6-S | Both | 70 | 2400 | 634 | 2000 | 528 | ø40(1-1/4″) |
Explosion Charts
Regal 200-E
